Discover a hand‑drawn journey through centuries of architecture, modeled after an architect’s plein‑air sketchbook․ Featuring detailed illustrations by Robbie Polley, this guide captures the evolution of styles from ancient monuments to contemporary forms, inviting readers to sketch and explore․!!!!
Purpose and How to Use the Sketchbook Format
In “Architectural Styles: A Visual Guide,” the sketchbook format serves as both a reference and a creative catalyst; Each page presents a hand‑drawn illustration of a key architectural element—columns, arches, vaults—paired with concise annotations that explain proportion, function, and historical context․ The layout mimics the spontaneity of on‑site sketching, encouraging readers to capture the essence of a building before the details blur․ To use the guide, start by selecting a style or period that intrigues you․ Flip to the corresponding section, observe the line work, and note the scale ratios highlighted in the margin․ Then, replicate the drawing in your own notebook, adding your observations or variations․ This iterative process deepens understanding of form and fosters a personal visual vocabulary․ The guide’s compact, pocket‑sized pages are designed for easy transport, allowing you to sketch on the go—whether on a museum walk, a site visit, or a quiet study session․ By blending rigorous architectural analysis with the freedom of hand‑drawing, the sketchbook format transforms passive reading into an active exploration of space, proportion, and stylistic evolution․
The guide encourages experimentation, inviting readers to annotate their own sketches with notes on material choices, structural systems, and cultural symbolism․ Its portable format supports on‑the‑go learning, allowing users to capture inspiration during travel, fieldwork, or quiet reflection․ Its concise annotations guide the eye, inviting spontaneous creativity making each page learning adventure․
Ancient Architectural Styles
Explore the roots of built form: from Egypt’s towering pyramids to Mesopotamian ziggurats, and the enduring stone temples of Greece․ These early works reveal humanity’s quest for permanence, symmetry, and meaning! setting the stage for all later architectural evolution․Sketches show how these shapes endure!
Egyptian Monumental Architecture
Egyptian monumental architecture is defined by its scale, durable stone construction, and symbolic alignment with the cosmos․ The visual guide presents hand‑drawn sketches that reveal the geometry of pyramids, mastabas, and mortuary temples, emphasizing precise use of limestone and granite․ Builders employed a strict modular system based on the royal cubit, allowing the Great Pyramid of Giza to achieve an original height of 146․6 metres with a base of 230․4 metres, each side forming an almost perfect square․ The alignment to true north, achieved through stellar observations, demonstrates an advanced understanding of astronomy that is captured in the guide’s annotated drawings․ The guide explores the evolution of temple design from early mastaba shrines of Saqqara to the hypostyle halls of Karnak․ Massive columns, carved in the form of papyrus or lotus buds, support vaulted ceilings while relief panels narrate deeds of pharaohs․ The use of recessed niches, false doors, and hieroglyphic banding creates a rhythmic façade that the sketchbook reproduces with careful weight․ Throughout the chapter, proportional grids illustrate how architects balanced vertical thrust with horizontal stability, a principle echoed in the guide’s marginal notes․ By juxtaposing measured sections with freehand perspective, the guide invites readers to feel the quality of stone blocks, the play of light on polished surfaces, and the timeless permanence that defines Egyptian monumental architecture․ Sketches inspire awe․
Greek Classical Orders and Proportions
Greek architecture is celebrated for its disciplined use of proportion and the three distinct orders that define its aesthetic language․ The Doric order, with its sturdy fluted columns and plain capital, emphasizes strength and simplicity; its entasis subtly thickens the shaft to counter optical illusion․ The Ionic order introduces a scroll‑laden capital and a more slender shaft, offering a graceful contrast that balances the Doric’s robustness․ The Corinthian, the most ornate, features acanthus leaves and a highly decorative capital, demonstrating the Greeks’ mastery of ornamental detail․ Proportional systems such as the Golden Ratio and the 1:2 ratio of column height to diameter underpin the harmony of these orders, ensuring that each element feels both independent and part of a cohesive whole․ By studying these proportions, architects learn how to create visual rhythm, balance, and a sense of order that endures across time․
These orders are not merely decorative; they embody a system of ratios that guide the eye from base to apex․ The Doric’s compressed proportions convey solidity, while the Ionic’s slenderness introduces a rhythmic cadence that feels almost musical․ The Corinthian, with its elaborate acanthus foliage, demonstrates how ornament can enhance structural expression․ By mastering these classical principles, modern designers can reinterpret ancient wisdom in contemporary contexts, ensuring that new buildings resonate with timeless elegance․
in stone, always
Medieval Architecture
This section of the hand-drawn visual guide surveys the medieval era, highlighting the shift from massive stone walls to emerging structural experiments․ Sketches reveal the period’s evolving spatial logic, material use, and decorative ambition across Europe and cultural art․
Romanesque: Solid Forms and Vaulting
Romanesque architecture, flourishing between the 10th and 12th centuries, is distinguished by its robust, weighty construction and the strategic use of stone to create a sense of solidity․ Thick walls, often several meters thick, support massive barrel and groin vaults that distribute weight efficiently, allowing for the addition of multiple stories and a more stable interior․ Rounded arches dominate doorways, windows, and arcades, providing a harmonious, repetitive rhythm that reinforces the structure’s massiveness․
Vaulting techniques were central to Romanesque design․ Barrel vaults, resembling long, continuous arches, were employed in nave ceilings to create a unified, tunnel‑like space․ Groin vaults, formed by the intersection of two barrel vaults, allowed for the construction of more complex, cross‑shaped floor plans and facilitated the placement of larger windows in transepts․ These vaults also introduced a subtle play of light and shadow, enhancing the interior’s dramatic atmosphere․
Iconic examples of Romanesque architecture include Speyer Cathedral in Germany, with its towering nave and intricate stone carvings; Durham Cathedral in England, renowned for its pioneering use of ribbed vaults; and Saint‑Sernin in Toulouse, France, which showcases a harmonious blend of structural innovation and decorative detail․ These masterpieces exemplify the Romanesque emphasis on strength, proportion, and the integration of sculptural ornamentation into the building’s fabric․ Its legacy endures, guiding architects who blend strength with graceful form today․!!
Gothic: Height, Light, and Structural Innovation
Gothic architecture, flourishing from the 12th to the 16th centuries, revolutionized building by prioritizing verticality and luminosity․ Its hallmark is the pointed arch, which distributes weight more efficiently than the semicircular Romanesque arch, allowing taller, slimmer walls and larger openings․ This innovation enabled ribbed vaults, where intersecting stone ribs form a skeletal framework that supports the ceiling, freeing wall space for expansive stained‑glass windows․ The result is soaring interiors that inspire awe․ The use of flying buttresses allowed for thinner walls, further enhancing the sense of height, and echoing the heavens․
The emphasis on height is expressed through soaring spires, flying buttresses, and slender columns that draw the eye upward․ Flying buttresses transfer lateral forces from the vaulted ceilings to external supports, permitting walls to be pierced with vast stained‑glass panels․ These panels not only illuminate the nave but also convey biblical narratives, turning the cathedral into a visual scripture․ Tracery, intricate stone lacework, frames the glass․ Their slenderness also reduces material costs and allows for more elaborate ornamentation․ Such engineering feats were celebrated as marvels of divine craftsmanship․

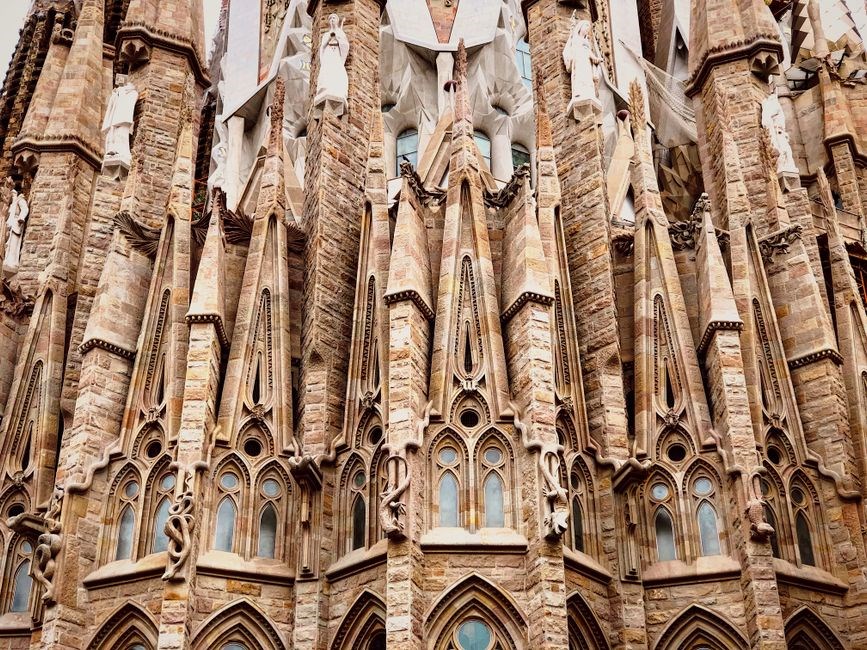

Architectural ornamentation in Gothic buildings is both symbolic and functional․ Gargoyles serve as water spouts while embodying mythic guardianship․ Pinnacles and finials crown buttresses, adding weight to counterbalance vault thrust․ The integration of sculpture into the façade—figures of saints, prophets, and allegorical beasts—provides narrative context and reinforces the spiritual purpose of the structure․ Such ornamentation also served to educate an illiterate populace through visual storytelling․ Their presence also reinforced the cathedral’s role as a communal gathering place․
Regional variations—French Flamboyant, German Brick Gothic, English Perpendicular—show Gothic’s adaptability․ Despite these differences, the core concepts of height, light, and structural ingenuity remain constant, underscoring Gothic architecture’s lasting influence on the built environment․ These stylistic nuances reflect local resources, climate, and cultural priorities, yet the underlying principles persist․ Thus, Gothic architecture remains a testament to human ingenuity and spiritual aspiration!

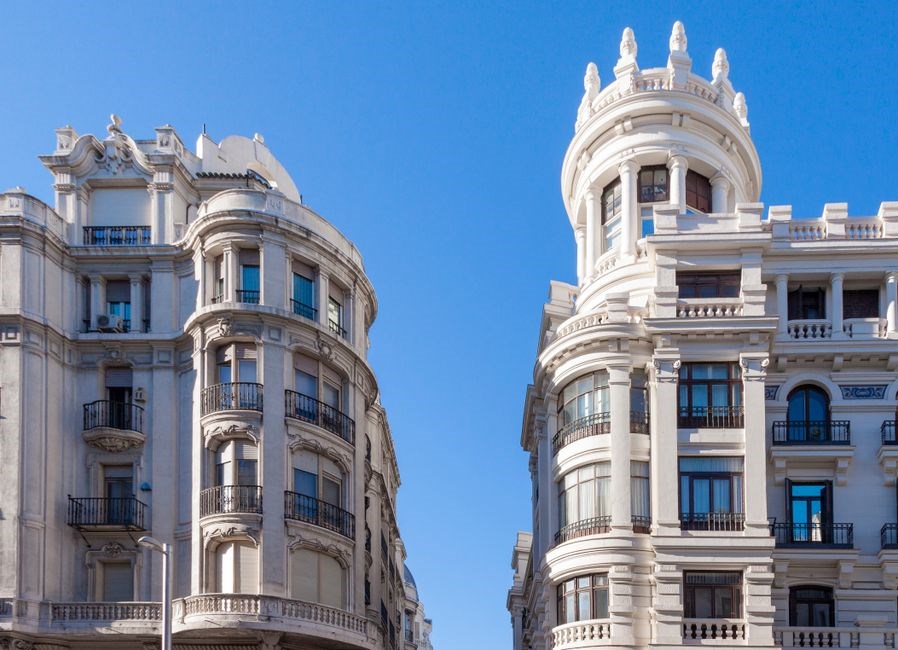

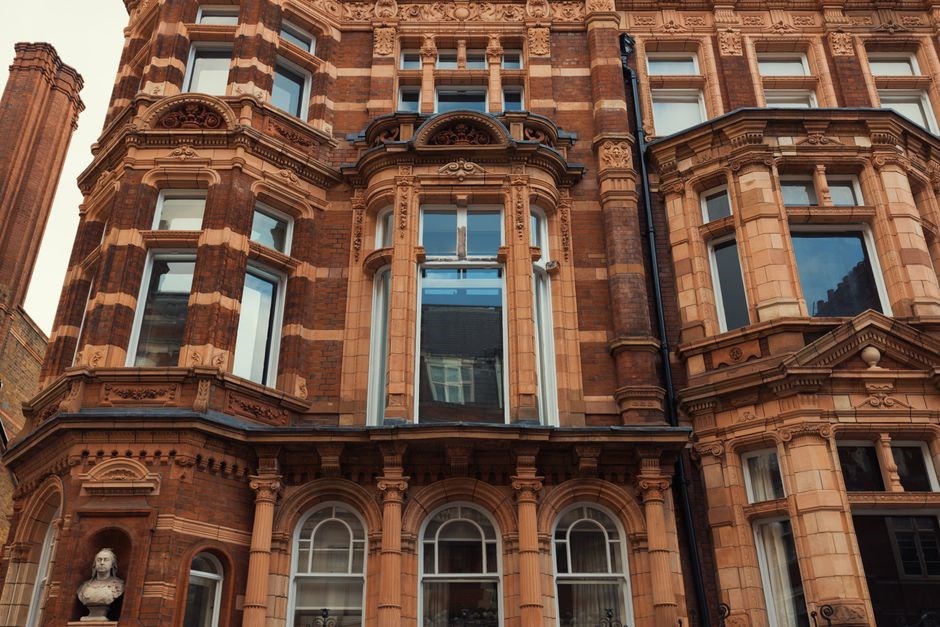

Early Modern Styles
Renaissance revives classical harmony, emphasizing proportion and symmetry, while Baroque pushes dynamic movement and lavish ornamentation․ Both eras celebrate artistic expression, yet differ in mood: the former balanced, the latter exuberant․ This guide sketches key motifs․!!

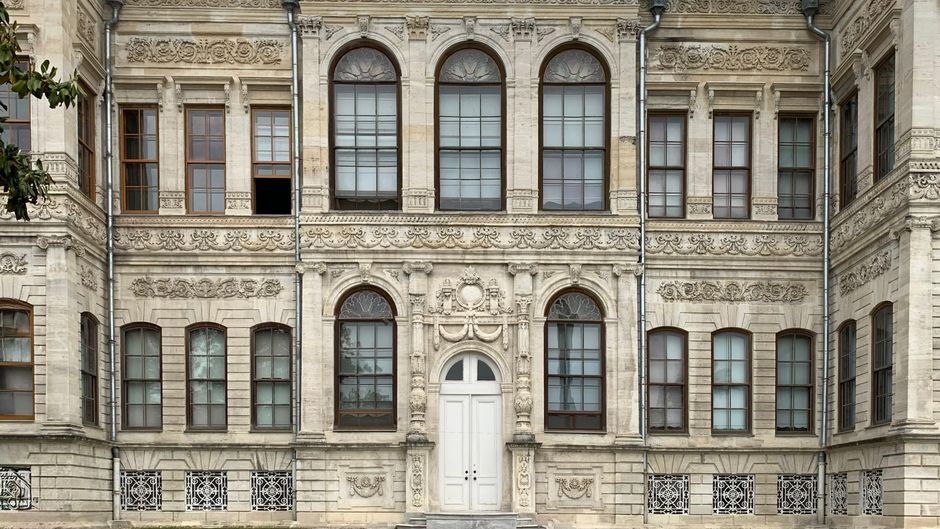

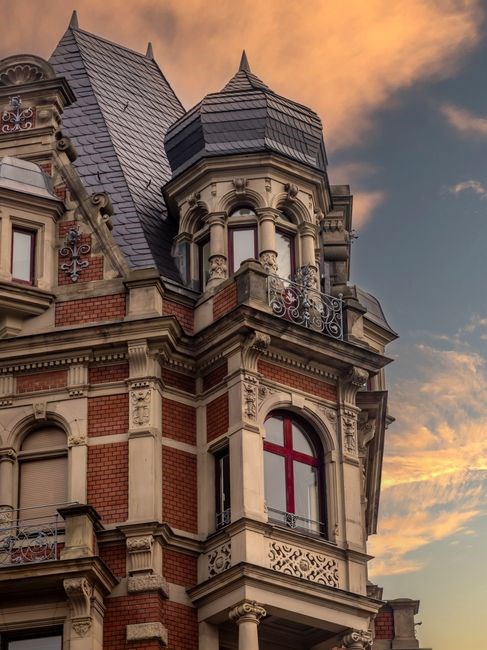

Renaissance: Revival of Classical Harmony
The Renaissance chapter of the visual guide invites readers to trace the rebirth of classical harmony that swept Europe from the 14th to the 17th century․ Inspired by the proportions of ancient Roman temples and the disciplined geometry of Greek orders, architects such as Brunelleschi, Alberti, and Palladio re‑interpreted antiquity with a fresh humanist spirit․ In the hand‑drawn sketches by Robbie Polley, each façade is rendered with meticulous line work that highlights the rhythmic placement of columns, pilasters, and entablatures․ The guide emphasizes how the golden ratio and modular systems re‑emerged in courtyard layouts, dome engineering, and façade composition, creating a balanced dialogue between structure and ornament․ Detailed marginal notes explain the use of rusticated stone at ground level, the transition to refined ashlar above, and the interplay of light across recessed arches․ By presenting plan fragments, elevation studies, and perspective sketches side by side, the book demonstrates how Renaissance architects achieved visual coherence while embracing new construction techniques such as linear perspective and improved vaulting․ Readers are encouraged to copy the proportional grids and experiment with the classic orders, experiencing first‑hand the disciplined yet inventive approach that defined the era’s architectural language․ The sketchbook also records the subtle use of rusticated pilaster bases, the play of shadow on cornice mouldings, and the careful proportioning of window openings that echo Vitruvian ideals in art!!․

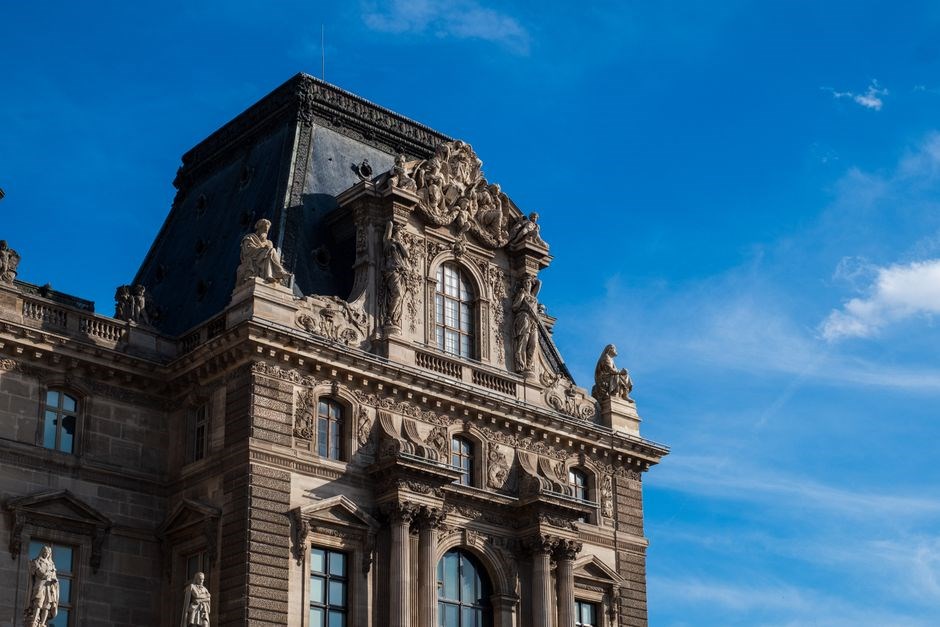

Baroque: Dynamic Movement and Ornamentation
Baroque architecture emerged in the early 17th century, marked by dramatic curves, lavish ornamentation, and theatricality that evoked emotion and awe․ Architects used complex geometries—oval plans and undulating façades—to create dynamic spaces․ Chiaroscuro, with strong contrasts of light and shadow, enhanced movement and depth․ Ornamentation included gilded stucco, intricate frescoes, and sculptural details flowing along walls and ceilings․ The style combined architecture with painting and sculpture into a unified, immersive environment, exemplified by churches like St․ Peter’s Basilica’s interior, where the dome’s curvature draws the eye upward․ Baroque embraced asymmetry and irregularity, breaking from strict symmetry․ This produced expressive façades, such as the dynamic façade of the Palace of Versailles, featuring projecting and receding elements that guide the viewer’s gaze․ In secular architecture, the style manifested in grand palaces, theaters, and public buildings, all designed to impress and inspire․ The Baroque’s emphasis on drama and ornamentation influenced later movements, including Rococo and Neoclassicism, and continues to inspire contemporary architects who blend historical references with modern technology․ The visual guide captures these elements through detailed sketches, highlighting the interplay of light, form, and decoration that defines the Baroque aesthetic․ The grandeur of Baroque also extended to interior spaces, where elaborate stucco ceilings, gilded altars, and dynamic staircases created a sense of movement and awe․!
Bernini’s St․ Agnes and Borromini’s San Carlo alle Quattro Fontane show Baroque fluid façades, while Versailles showcases grand scale and theatricality․․․

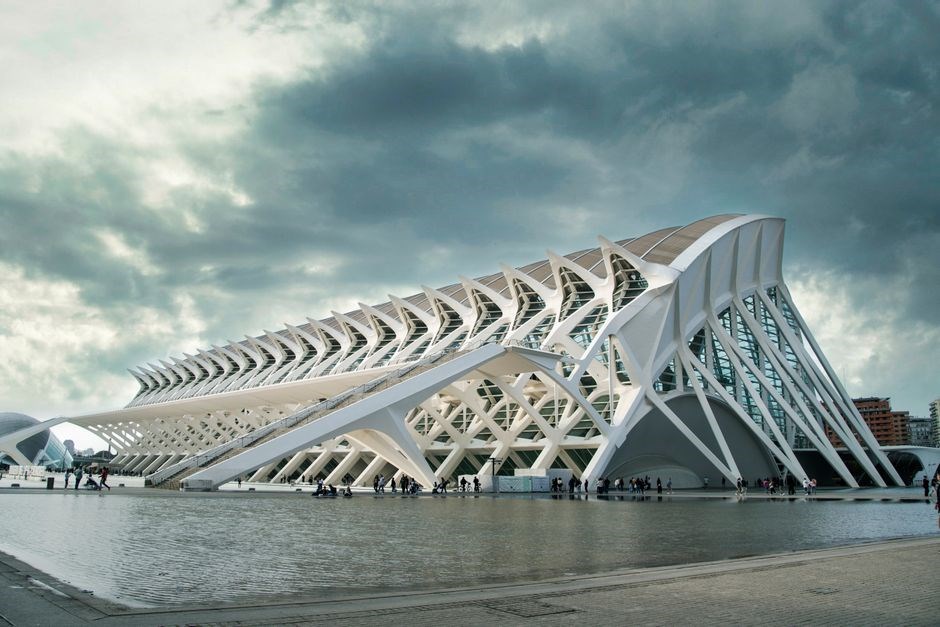

Contemporary Architecture

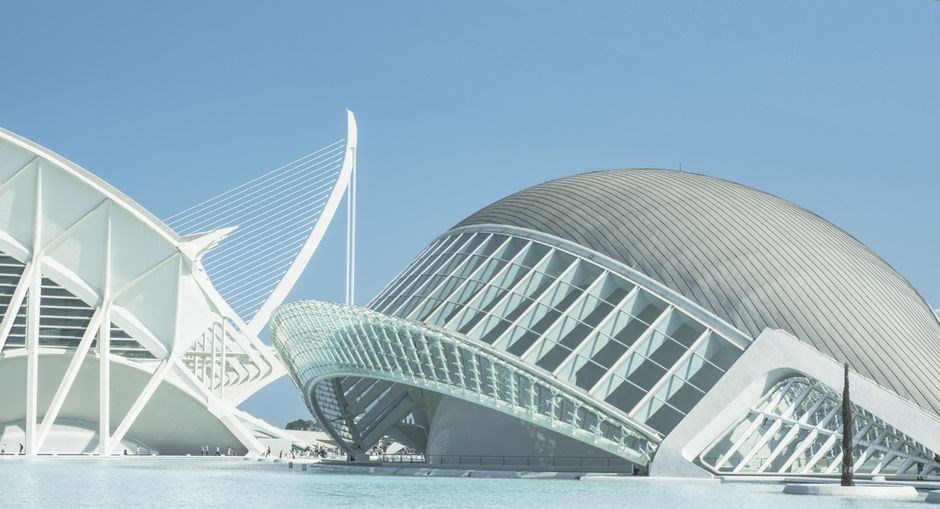

Modernism’s clean lines give way to Post‑modern playfulness, while eco materials digital fabrication redefine form․ Iconic skyscrapers, modular housing, and reuse projects illustrate a global dialogue that balances function, technology, and eco stewardship․Innovation thrives

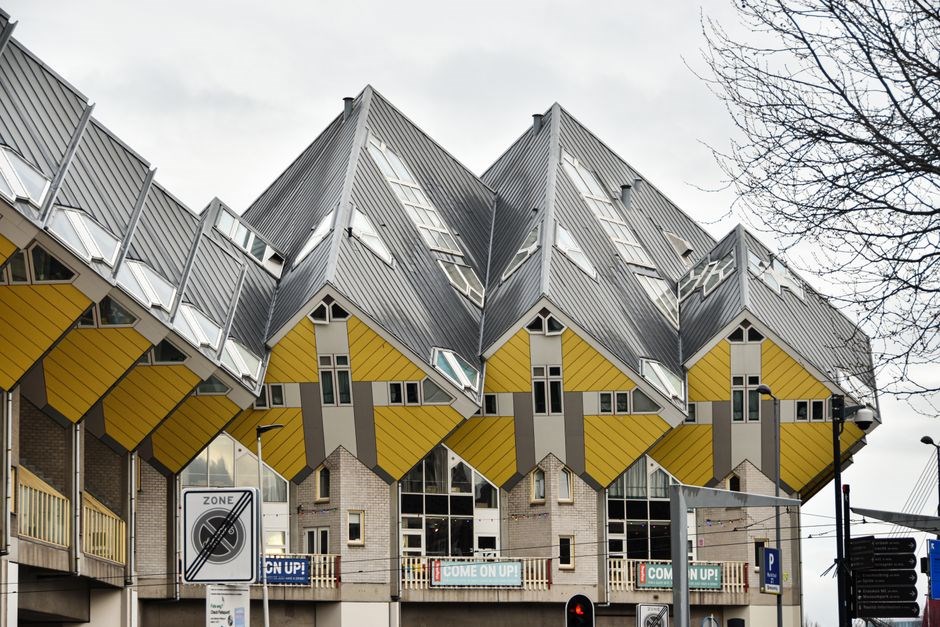

Modernism to Postmodernism: From Function to Play
Modernism emerged in the early twentieth century as a radical departure from historicism, championing the credo that “form follows function․” Architects such as Le Corbusier, Mies van der Rohe, and Walter Gropius embraced industrial materials—steel, glass, and concrete to create open, unadorned spaces that celebrated structural honesty and rational planning․ The International Style spread worldwide, influencing cityscapes from New York to Shanghai, and its emphasis on minimalism, modularity, and efficient use of resources became a global standard for modern architecture․ Yet by the 1960s, a counter‑movement began to surface․ Postmodernists like Robert Venturi, Michael Graves, and Philip Johnson challenged the austere logic of Modernism, arguing that architecture should also be playful, contextual, and culturally resonant․ They reintroduced ornament, historical references, and a sense of humor, famously proclaiming that “the ugly is beautiful․” This shift gave rise to buildings that juxtaposed bold colors, whimsical forms, and eclectic materials, creating an architecture that was both functional and expressive․ In contemporary practice, the dialogue between function and play continues to evolve․ Sustainable design, digital fabrication, and parametric modeling allow architects to blend rigorous performance with imaginative expression․ The visual guide captures this evolution, illustrating how each movement’s sketches reveal the tension between utilitarian purpose and artistic freedom, inviting readers to trace the lineage from the austere clarity of Modernism to the vibrant, context‑sensitive language of Postmodernism․
